Head positioning devices provide stability during cervical procedures
Designed for use with our modular table systems, the Cervical Management Base Unit and Coupler II head fixation accessories support the use of Mayfield® or DORO® skull clamps.
The Cervical Management Base Unit mounts on the crossbar of the Trios® Base (7803-457) or MTS Advanced Control Base (5879-1) and can be used with either the Spinal Surgery Top or the Radiolucent Imaging Top. The Cervical Management Base Unit also supports traction for the cervical spine via a longitudinal slide feature and fine vertical adjustment through the use of a crank handle.
The Coupler II mounts on the rails of the spinal top of the modular table systems and comes standard with aluminum and radiolucent adaptors for the Mayfield skull clamp. Spinal top adaptor brackets are used to mount the Coupler II on the frame. Note: an additional adaptor is required with the DORO Radiolucent Skull Clamp; the DORO Aluminum Skull Clamp attaches to the standard aluminum adapter.
Positioning
|
PRONE |
SUPINE |
Trios Cervical Management Base Unit – Part #7803-457
MTS Cervical Management Base Unit – Part #5979-1
Trios Cervical Management Base Unit Mounting Bracket (allows conversion of 5979-1 for use on the Trios Table) – Part #7803-456
Coupler II – Part #5873
Trios Coupler II Complete Assembly (includes brackets) – Part #7803-471
Warranty
We guarantee all of our products for a period of one year from the date of shipment from Mizuho OSI for defects in material and workmanship with the exception of products which are misused, altered or damaged.
DORO® is a registered trademark of pro med instruments GmbH.
Mayfield® is a registered trademark of Schaerer Mayfield USA, Inc.
Accessories (8)
Part #6910-1001
DORO® QR3 Aluminum Skull Clamp
DORO® is a registered trademark of pro med instruments GmbH.
Part #6910-4004
DORO® Radiolucent Skull Clamp
DORO® is a registered trademark of pro med instruments GmbH.
Radiolucent Skull Clamp Adaptor, Cervical Management Base Unit
DORO® Part #5979-300
Mayfield® Part #5979-200
DORO® is a registered trademark of pro med instruments GmbH.
Mayfield® is a registered trademark of Schaerer Mayfield USA, Inc.
Part #5873-300
DORO® Radiolucent Adaptor for the Coupler II
DORO® is a registered trademark of pro med instruments GmbH.
Part #6910-3006-00
DORO® Disposable Stainless Steel Skull Pins, Adult
12 pkgs. 3 pins each
DORO® is a registered trademark of pro med instruments GmbH.
Part #6910-3006-2

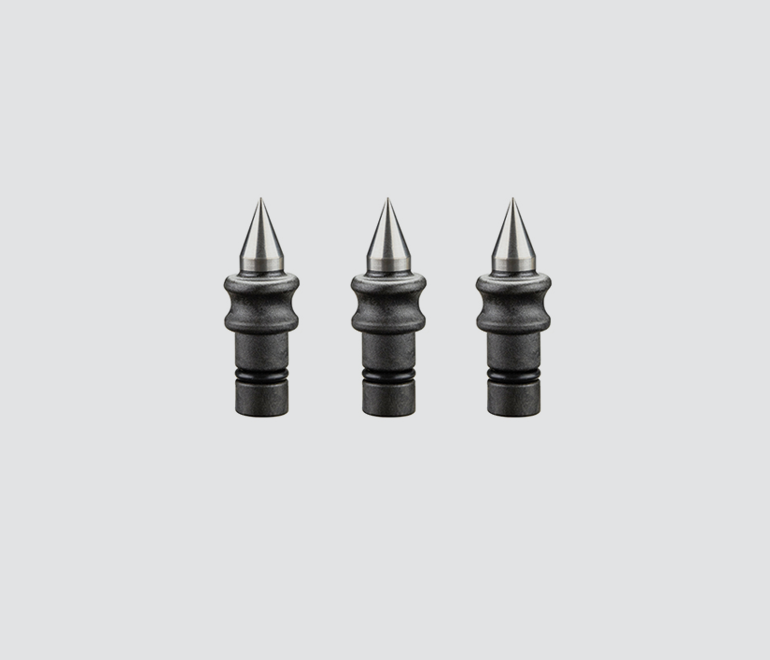

DORO® Disposable Titanium Skull Pins, Adult
12 pkgs. 3 pins each
DORO® is a registered trademark of pro med instruments GmbH.
Part #6910-3006-10
DORO® Disposable Stainless Steel Skull Pins, Pediatric
12 pkgs. 3 pins each
DORO® is a registered trademark of pro med instruments GmbH.
Part #6910-3006-3
DORO® Disposable Titanium Skull Pins, Pediatric
12 pkgs. 3 pins each
DORO® is a registered trademark of pro med instruments GmbH.
